Joints 110 kV
Technical description
Pre-moulded outdoor joint MCB 126 / 145 is designed to connect two XLPE 64/110 kV high voltage cables. Joint MCB 126 / 145 could be produced in di erent constructions which give the possibility of screen wires direct connection, cross-bonding connection of di erent cable phase wires screen (screen transition), wires screen connection with optical fibers in the metal tubes (modules).

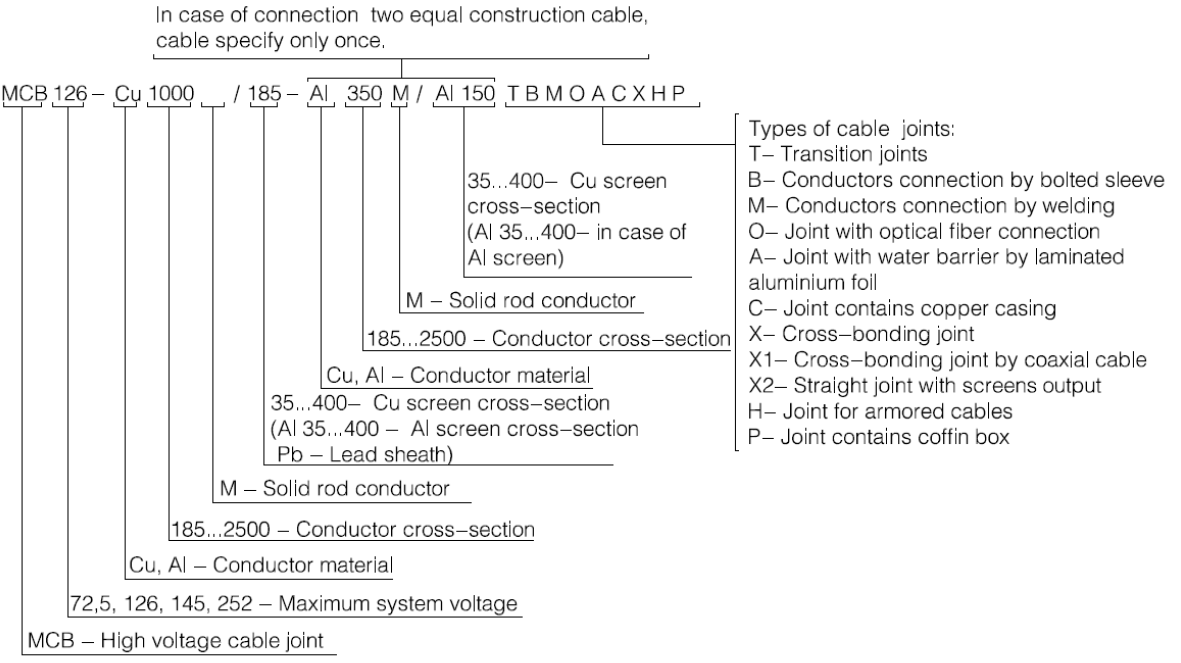

Marking of high-voltage cable joints
Basic components
Joint body

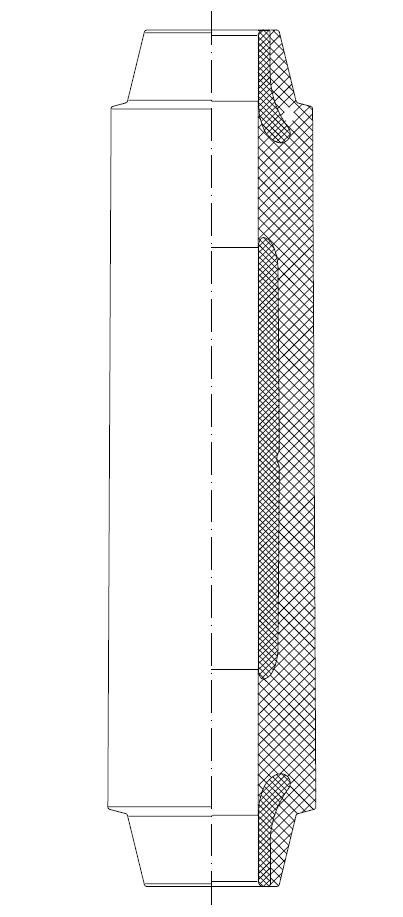

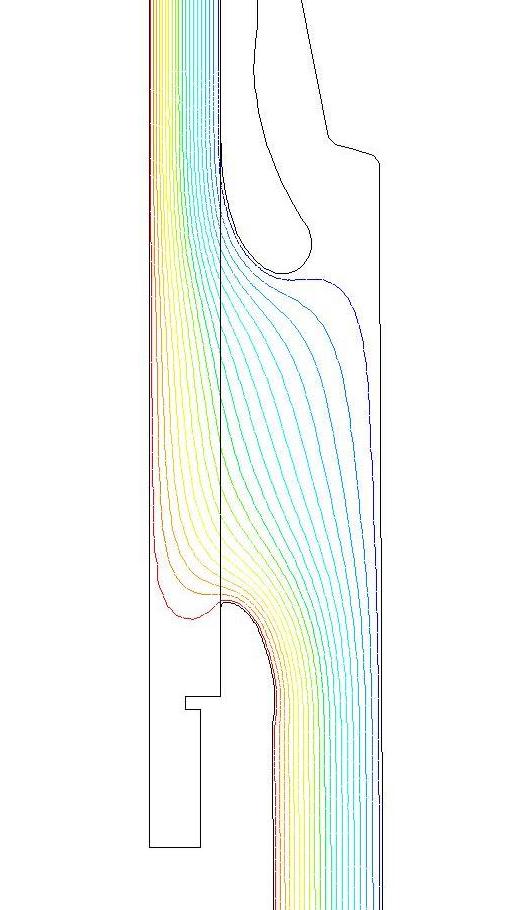

• Silicone pre-moulded joint body with conductive elements for electrical field control
Connector and sealing materials
• One piece pre-moulded silicone joint body
• Special tapes for di erent purposes
• Protective covering from heat shrinkable tubes and sleeves (optionally it
other protective covering)
Application
| Type | MCB 126 / 145 |
| Highest voltage for equipment (Um),kV | 126 / 145 |
| Cable conductor cross- section range, mm² | 185÷2000/185÷1600 |
| Maximum cable diameter, mm | 115 |
| Maximum cable insulation diameter, mm | 91 |
Technical data
Demands to the electrical parameters:
AC voltage withstand test: 160 kV for 30 min. / 190 kV for 30 min.
Partial discharge test: <5 pC at 96 kV / <5 pC at 114 kV
Impulse voltage (10+/10- impulses): 550 kV / 650 kV
Currency load rating:
Rated operational current: limited by cable specification
Short circuit current: limited by cable specification
Joint body routine tests:
Test voltage level: 160 kV for 30 min / 190 kV for 30 min
Partial discharges level: <5pC at 96 kV / <5 pC at 114 kV
Mechanical characteristics:
Approximate weight, kg: 35
